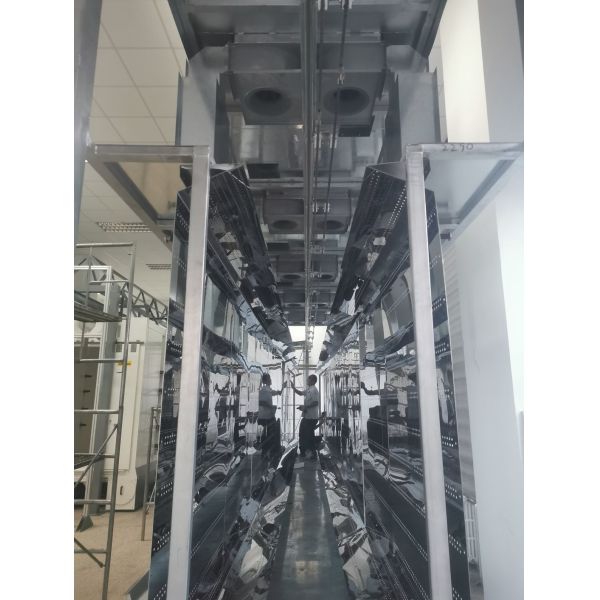

MDF Powder Coating Line for Wood Panels and Metal Components
Designed for MDF and Heat-Sensitive Substrates
This MDF-adapted powder coating production line is specially designed for medium-density fiberboard (MDF) panels and selected metal components. The system combines automatic electrostatic powder spraying with manual touch-up stations, providing high coating quality while maintaining the flexibility required for products with different sizes and shapes.
A Power & Free overhead conveyor system transports workpieces smoothly throughout the production process, while manual loading and unloading allow flexible handling of various panel configurations.
The production line is optimized for low-temperature curing powders, making it suitable for heat-sensitive substrates such as MDF without compromising coating quality or production efficiency.
Typical Production Process
Manual Loading
↓
Preheating (60–80°C, approx. 3 min)
↓
Automatic Powder Spraying + Manual Touch-Up
↓
Low-Temperature Powder Curing (135–140°C, approx. 10 min)
↓
Natural Cooling
↓
Manual Unloading
System Features
Hybrid Automatic & Manual Powder Coating
Automatic spray guns ensure stable coating thickness and high production efficiency, while manual touch-up stations provide complete coverage for edges, grooves, and complex product geometries.
Power & Free Conveyor System
The Power & Free overhead conveyor offers flexible workpiece transportation, process accumulation, and smooth production flow while allowing future expansion or process modification.
Low-Temperature Curing Technology
The production line is designed for low-temperature powder coatings, enabling efficient curing of MDF panels while minimizing thermal stress and maintaining substrate stability.
Flexible Production
Suitable for MDF panels, engineered wood products, and selected metal components with various dimensions and production requirements.
Powder Coating Process
- Surface Preparation: Before coating, the workpieces are cleaned to remove dust and surface contaminants, ensuring proper powder adhesion and consistent coating quality.
- Preheating: The workpieces are preheated to approximately 60–80°C, improving powder deposition and coating uniformity, particularly for MDF substrates.
- Electrostatic Powder Application: Electrostatically charged powder is applied using automatic spray guns, while manual touch-up ensures complete coating of edges and difficult-to-reach areas.
- Low-Temperature Curing: The coated workpieces pass through a curing oven operating at approximately 135–140°C, where the powder melts, flows, and chemically cross-links to form a durable protective coating.
- Cooling: Controlled natural cooling stabilizes the coating and prepares the workpieces for handling and packaging.
- Quality Inspection: Finished products are inspected for coating thickness, appearance, adhesion, and overall coating quality before shipment.
Customized Engineering Solutions
Every powder coating production line is designed according to the customer's products, production capacity, and factory layout. We can customize:
-
Conveyor configuration
-
Spray booth design
-
Heating method
-
Powder recovery system
-
Production capacity
-
Workpiece dimensions
-
Plant layout
-
Automation level
Contact us to receive a customized technical proposal and a complete powder coating solution tailored to your manufacturing requirements.
